ANSI #100 Roller Chain – 1-1/4 Inch Pitch Heavy Duty Industrial Drive Chain
Product Overview
The ANSI #100 roller chain is engineered for heavy-duty industrial power transmission and conveying applications. Manufactured in full compliance with ANSI B29.1, it features a 1-1/4 inch pitch and robust construction to handle continuous high loads with stable, reliable performance.
Designed for demanding environments such as mining conveyors, industrial machinery, and material handling systems, this chain helps reduce downtime, extend service life, and lower total maintenance costs.
Key Advantages
-
ANSI B29.1 compliant design →
Ensures precise sprocket engagement and seamless replacement with standard ANSI components. -
Heat-treated alloy steel construction →
Withstands shock loads and fatigue stress in heavy industrial and conveying applications. -
Accurate pitch and roller alignment →
Reduces vibration, noise, and uneven wear during long-term operation. -
Multiple strand options available →
Single, double, and triple strand designs support different load requirements without oversizing. -
Optional surface treatments →
Zinc-plated, black oxide, and stainless steel versions adapt to humid or corrosive environments. -
Low maintenance structure →
Improves lubrication retention, slowing chain elongation and reducing replacement frequency.
Technical Specifications

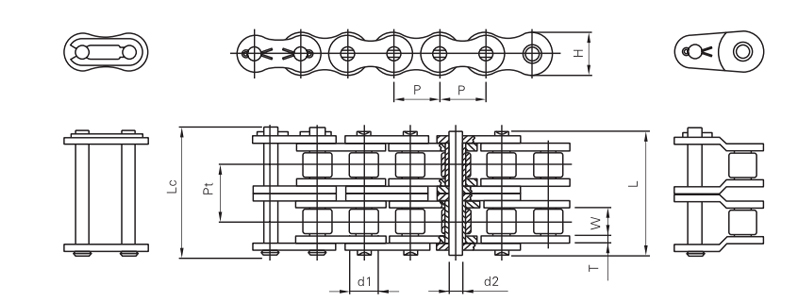

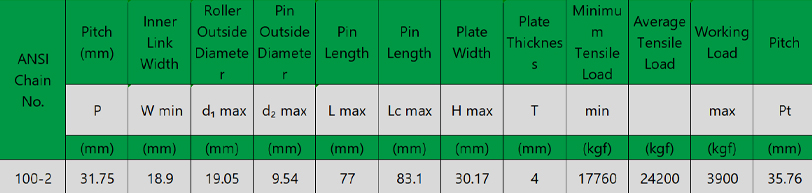

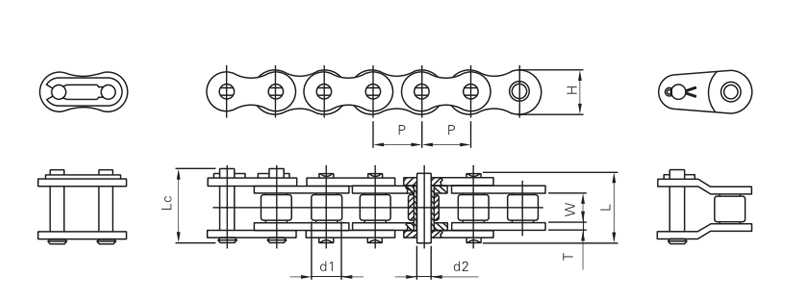

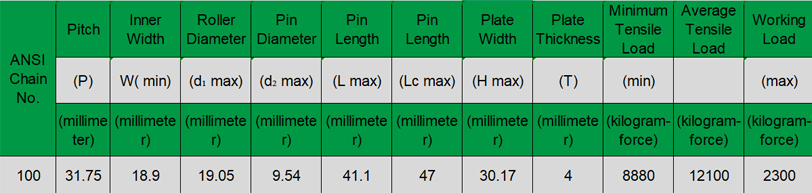

ANSI #100 Roller Chain Specifications
Typical Applications
-
Mining and bulk material conveyors
-
Heavy industrial production lines
-
Agricultural harvesting and processing equipment
-
Port, logistics, and material handling systems
-
Construction hoists and winches
Designed to operate reliably under continuous load, dust, and vibration, ensuring stable power transmission.
Quality & Support
Each chain undergoes dimensional inspection and tensile strength testing before shipment. Custom lengths, strand configurations, and connecting links are available. Technical support is provided to assist with selection, installation, and application matching.
