Description
Overview

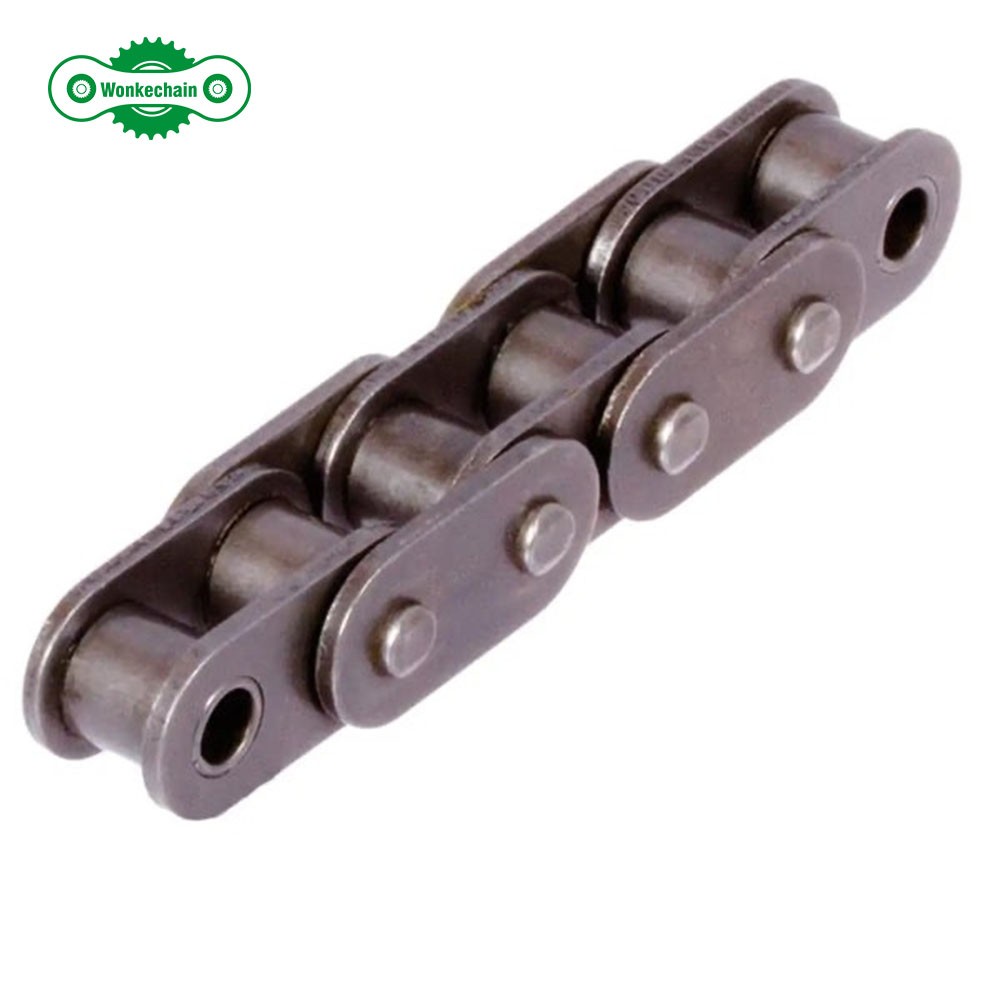

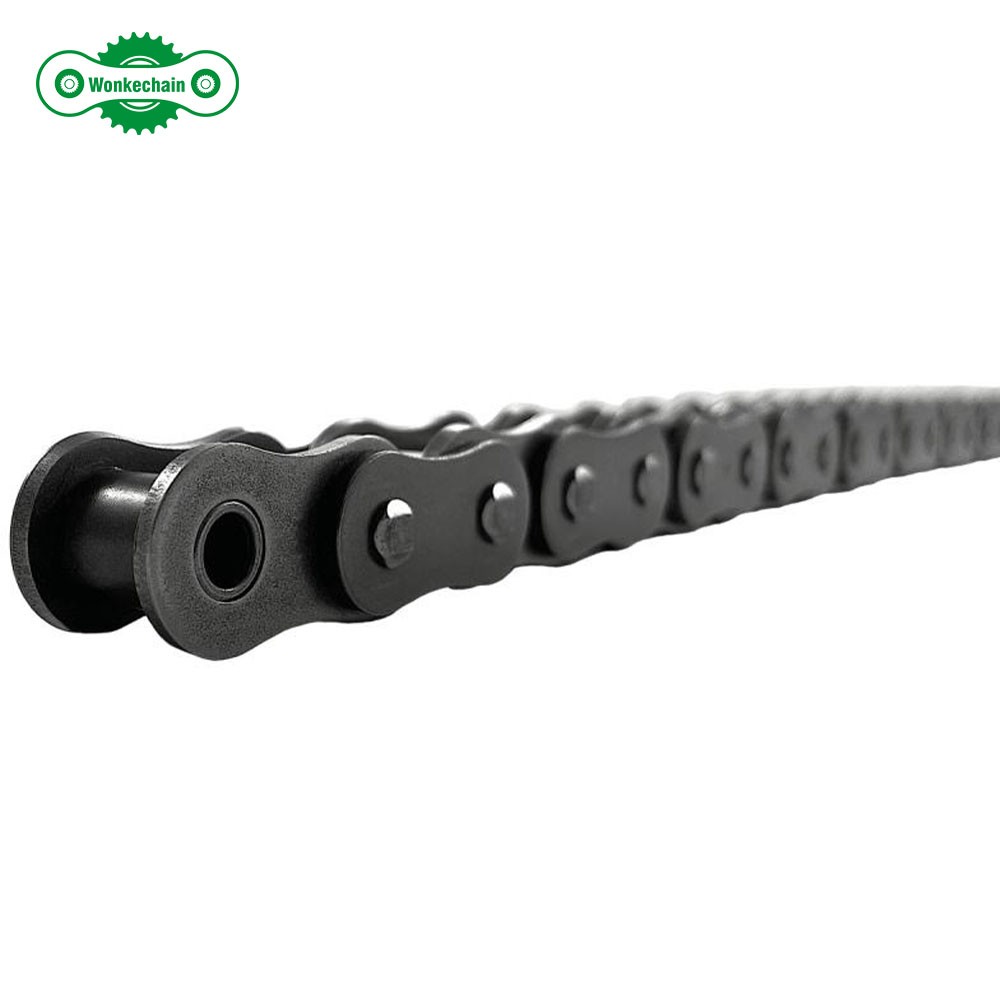

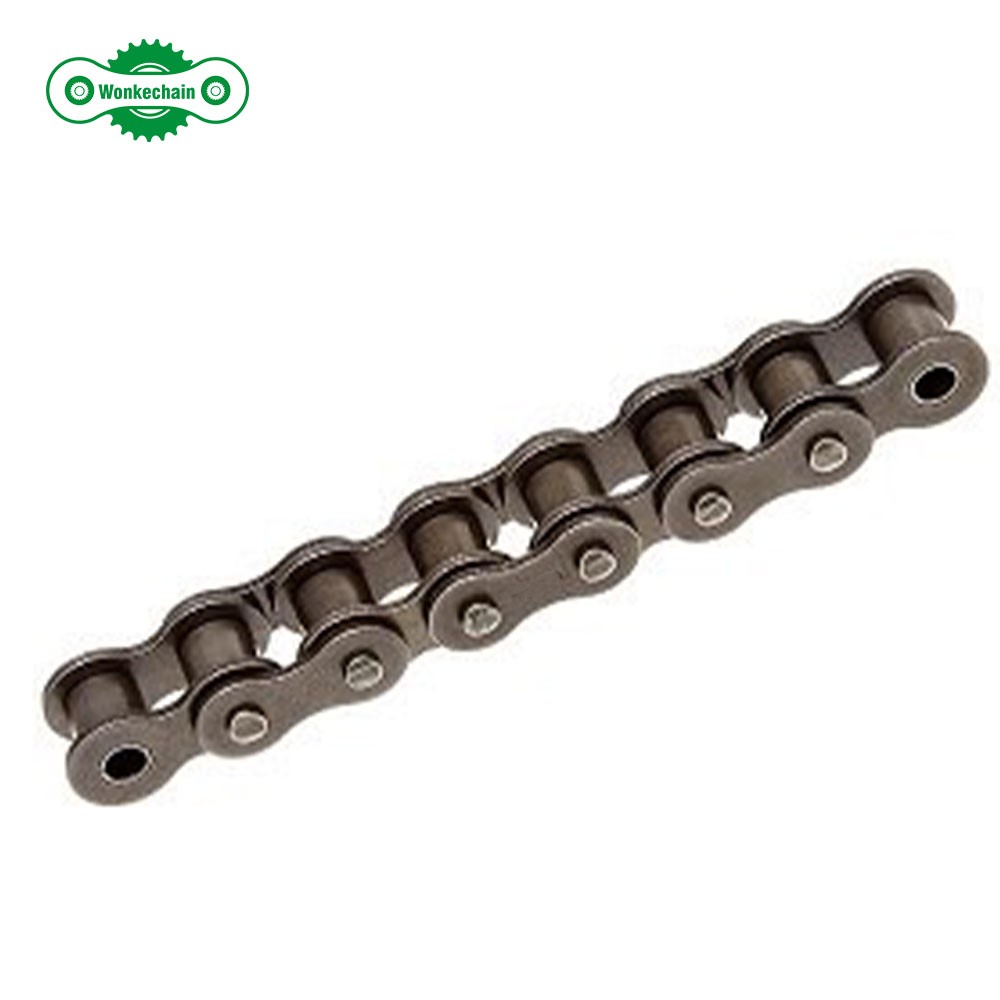

The 12B roller chain is a reliable and durable solution for industrial power transmission. Manufactured in accordance with the ISO 606 standard, this 12B industrial roller chain is widely used in machinery, conveying systems, and automation equipment. With high strength materials and precise processing, it ensures stable performance, low elongation, and long service life.
Specifications
| Parameter | Value |
|---|---|
| ISO Chain No. | 12B |
| Pitch (P) | 19.05 mm |
| Inner Width (W min) | 11.68 mm |
| Roller Outer Diameter (d1 max) | 12.07 mm |
| Pin Outer Diameter (d2 max) | 5.72 mm |
| Pin Length (L max) | 22.7 mm |
| Link Plate Length (Lc max) | 27.3 mm |
| Link Plate Width (H max) | 16.13 mm |
| Link Plate Thickness (T/t) | 1.8 / 1.8 mm |
| Minimum Ultimate Tensile Strength | 2270 kgf |
| Average Ultimate Tensile Strength | 3350 kgf |
Material: Carbon Steel / Alloy Steel
Surface Treatment: Natural / Black Oxide / Nickel Plated
Key Features
High Strength & Durability
This 12B transmission roller chain is heat-treated for enhanced wear resistance and fatigue strength, making it ideal for heavy-duty applications.
Precision Manufacturing
Produced with strict tolerance control, the ISO 606 12B chain ensures smooth operation and reduced vibration.
Low Elongation
Optimized structure minimizes stretching during long-term use, improving transmission accuracy.
Wide Compatibility
Fully compatible with standard sprockets, this 12B single strand roller chain is easy to install and replace.
Factory Direct Supply
As a manufacturer, we provide high quality 12B chain at competitive prices with stable supply.
Applications
The 12B industrial roller chain is widely used in:
- Conveyor systems
- Agricultural machinery
- Packaging equipment
- Food processing lines
- Automation and production lines
- Material handling systems
Detailed Description
The 12B roller chain is engineered for efficient and reliable power transmission in various industrial environments. Each component is manufactured using high-grade steel and undergoes strict heat treatment processes to ensure maximum strength and durability.
During production, advanced assembly and lubrication techniques are applied to reduce friction and improve chain flexibility. This results in smoother operation and extended service life, even under continuous working conditions.
Compared with standard chains, our ISO 606 12B chain offers better wear resistance and load capacity, making it suitable for demanding applications. Whether used in conveying or transmission systems, it delivers consistent and efficient performance.
We support OEM customization, including length, packaging, and surface treatment, ensuring the product meets your exact requirements.
Supply Information
- MOQ: Flexible
- Delivery Time: Fast production & shipment
- Samples: Available
- Packaging: Standard export packaging
- Payment Terms: T/T, negotiable
FAQ
Q: Is this 12B roller chain compatible with standard sprockets?
A: Yes, it fully complies with ISO 606 and matches standard sprockets.
Q: Can you provide customized lengths?
A: Yes, we offer OEM services based on your requirements.
Q: Do you offer surface treatment options?
A: Yes, including nickel plated, black oxide, and more.
