Introduction

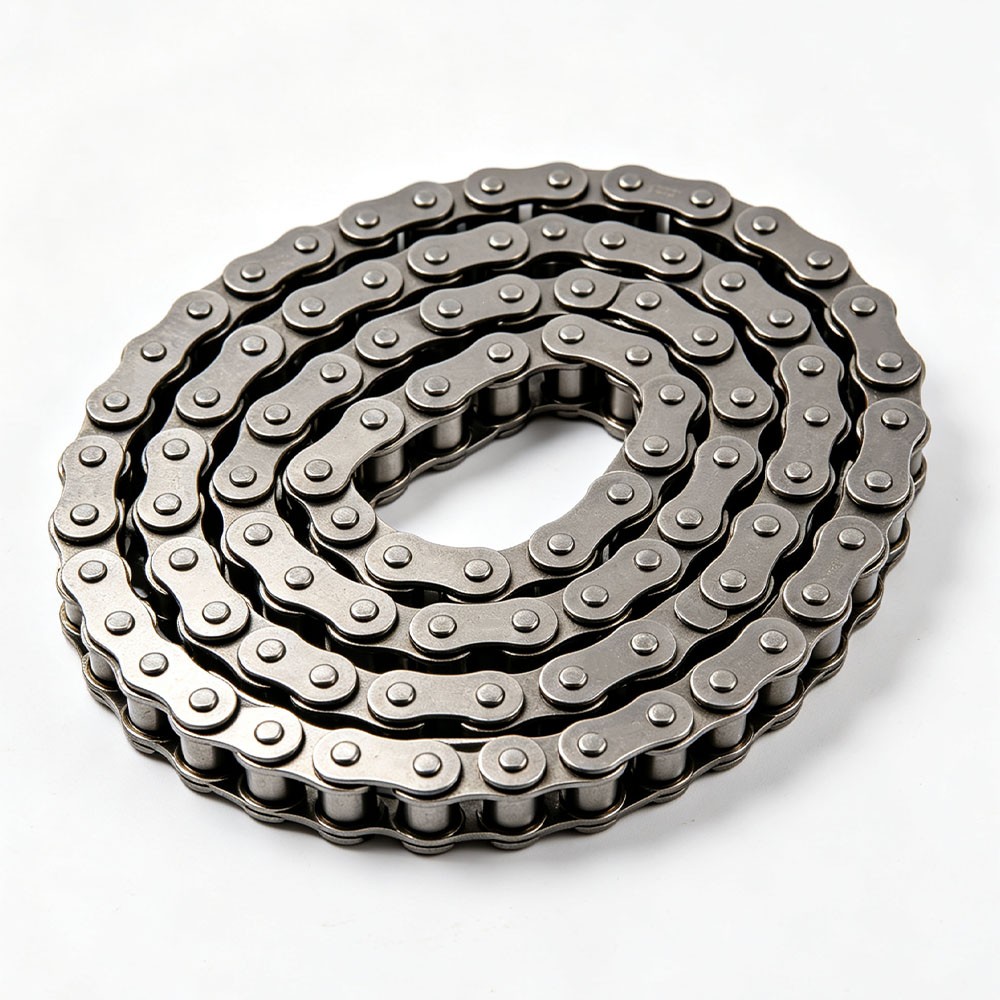

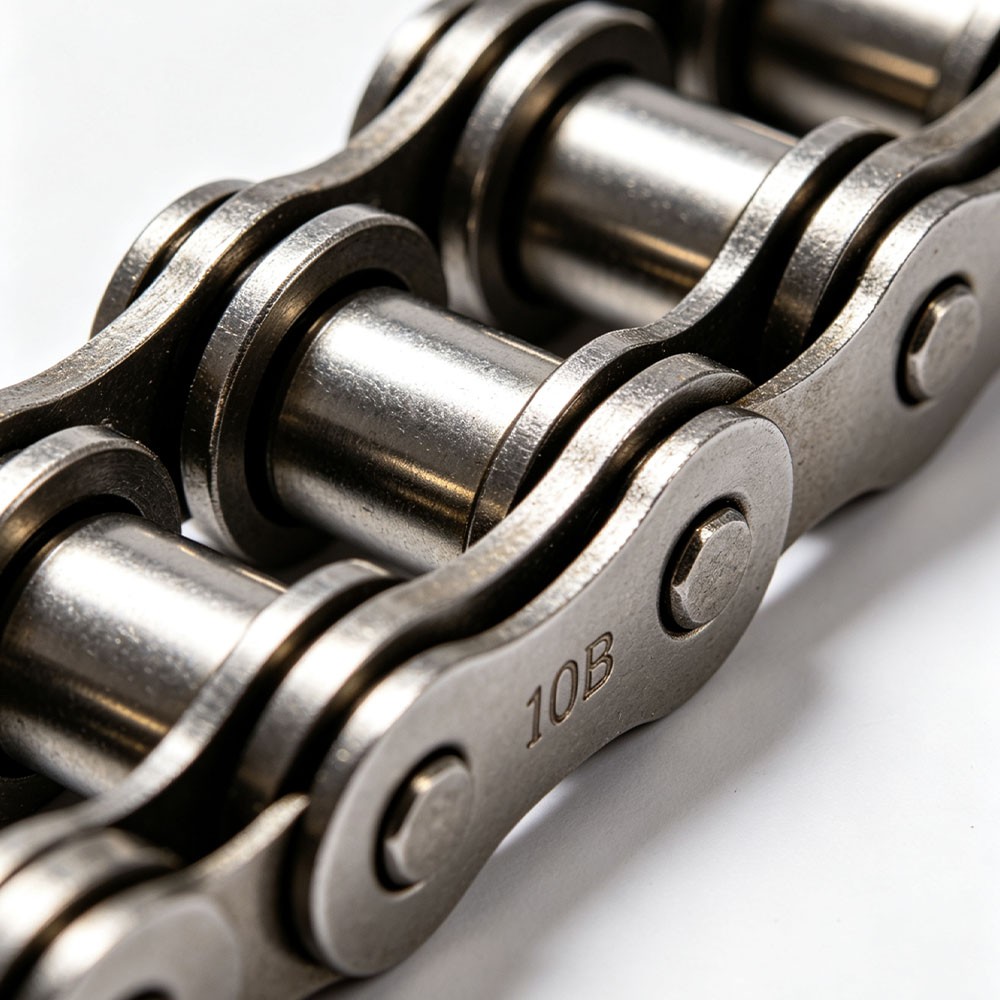

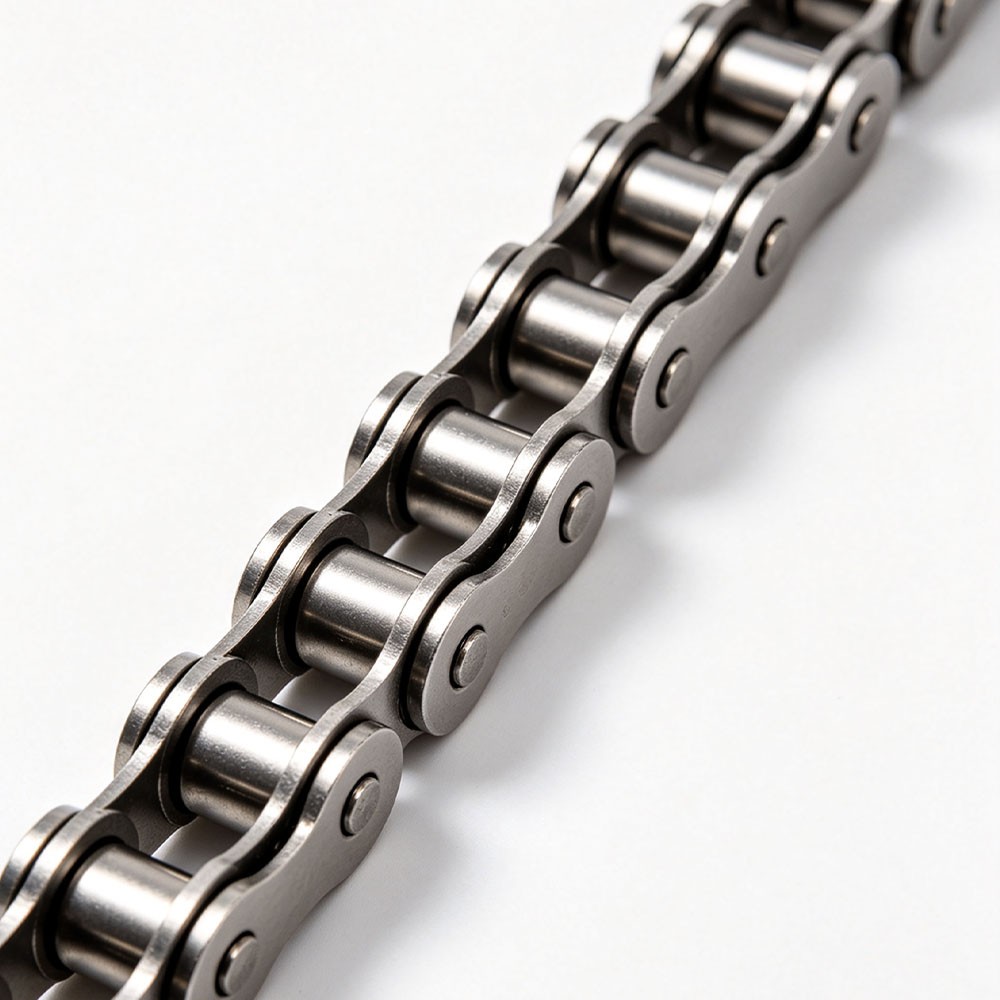

The 10B roller chain is a robust, single-strand industrial Drive Chain designed for medium-duty power transmission in compact machinery. Fully compliant with ISO 606, this chain delivers reliable performance in conveyors, packaging systems, agricultural equipment, and motor drives. Made from high-carbon steel (e.g., C1045), it features precision-engineered dimensions, hardened rollers and pins, and consistent tensile strength. As a dedicated 10B industrial roller chain manufacturer, we ensure every batch meets strict dimensional and mechanical tolerances — no compromises, no mixed models. Whether you need a 10B single strand roller chain for OEM integration or replacement, our factory guarantees quality, durability, and value.
Technical Specifications
Parameter
Value
ISO Chain No.
10B
Pitch (P)
15.875 mm
Inner Width (W min)
9.65 mm
Roller Outer Diameter (d1 max)
10.16 mm
Pin Outer Diameter (d2 max)
5.08 mm
Pin Length (L max)
19.6 mm
Link Plate Length (Lc max)
23.7 mm
Link Plate Width (H max)
14.73 mm
Link Plate Thickness (T/t)
1.7 / 1.7 mm
Minimum Ultimate Tensile Strength
2270 kgf
Average Ultimate Tensile Strength
2800 kgf
Key Features
✔️ Precision Dimensions for Perfect Sprocket Compatibility
Every 10B transmission roller chain is manufactured to ISO 606 tolerances: pitch ±0.25 mm, roller diameter ±0.05 mm, pin diameter ±0.03 mm. This ensures smooth, quiet engagement with standard 10B sprockets — eliminating skip, noise, and accelerated wear.✔️ Advanced Heat Treatment for Long Life
Pins & bushings: Through-hardened to HRC 48–52Rollers: Surface-hardened to HRC 52–58
This dual-hardness profile prevents galling and extends service life under cyclic loads — critical for continuous operation.
✔️ High Load Capacity & Low Elongation
With a minimum breaking load of 2270 kgf (≈22.3 kN) and average of 2800 kgf (≈27.5 kN), the 10B chain handles demanding applications. Field tests show <0.4% elongation after 500,000 cycles at 50% load — confirming its reliability as a high quality 10B chain.✔️ Corrosion Resistance & Finish Options
Standard finish: black oxide (salt spray ≥48 hrs). Optional zinc plating (8–12 µm, ASTM B633 SC2) available for humid or outdoor use — ideal For Food Processing or agricultural environments.✔️ Factory-Direct Quality Control
We perform 100% final inspection per ISO 606 Annex B:• Dimensional verification (CMM + go/no-go gauges)
• Tensile testing on sample links
• Visual check for cracks, burrs, misalignment
No third parties — pure ISO 606 10B chain, built to last.
Applications
Widely used in medium-duty industrial systems:• Conveyor belts (bulk handling, sorting lines, bottling plants)
• Packaging machinery (case packers, shrink wrappers, labelers)
• Agricultural equipment (harvesters, balers, seeders)
• Food processing (mixers, cutters, conveyors)
• Textile machines (loom beams, take-up mechanisms)
• Material handling (forklift attachments, lift tables)
• HVAC fan drives and damper actuators
Its 15.875 mm pitch balances strength and flexibility — making it the preferred choice for reliable, maintenance-friendly power transmission where space allows moderate chain size.
In-Depth Product Profile
1. Structural Design Integrity
The 10B chain follows the classic roller chain architecture with optimized geometry: inner plates, outer plates, pins, bushings, and rollers — all precisely aligned. Unlike generic chains, our design maintains uniform plate thickness (1.7 mm) and consistent rivet integrity, preventing elongation and fatigue failure under repeated loading.
2. Manufacturing Process Rigor
Every step is documented under ISO 9001:2015 procedures — ensuring full traceability and repeatability.
3. Performance Validation
Tested under 50% of ultimate load (1135 kgf):
