Description

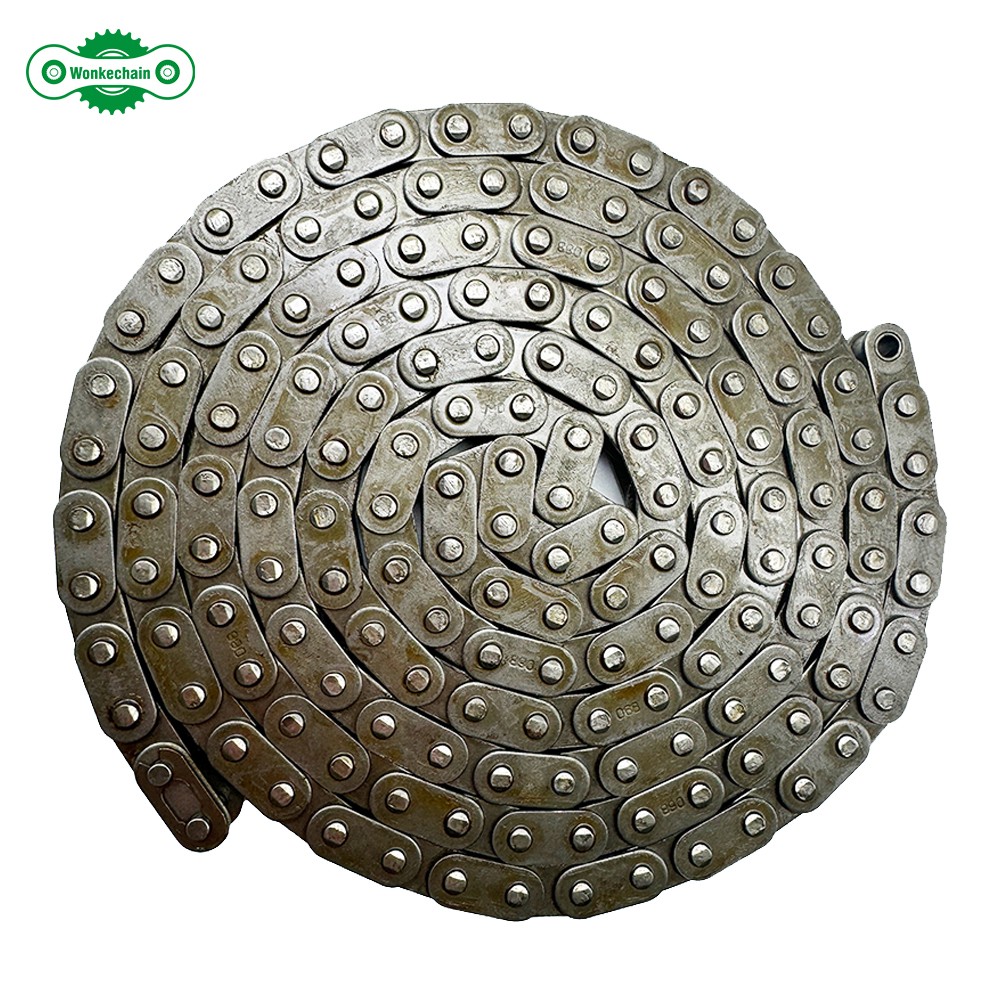

06B-1 Roller Chain
Balanced Performance for General Machinery
Overview
06B-1 roller chain is one of the most commonly used ISO B series chains, offering a balance of strength, durability, and efficiency for a wide range of industrial applications.
Key Features
- Balanced strength and weight
- Smooth operation at moderate speeds
- High wear resistance
- Reliable long-term performance
Technical Specifications
| Parameter | Value |
|---|---|
| Pitch | 9.525 mm |
| Roller Diameter | 6.35 mm |
| Inner Width | 5.72 mm |
| Pin Diameter | 3.28 mm |
| Pin Length | 13.15 mm |
| Inner Plate Depth | 8.20 mm |
| Plate Thickness | 1.30 mm |
| Ultimate Tensile Strength | 9.0 kN |
| Average Tensile Strength | 10.4 kN |
| Weight | 0.41 kg/m |
Applications
General machinery, conveyors, automation equipment
