Description

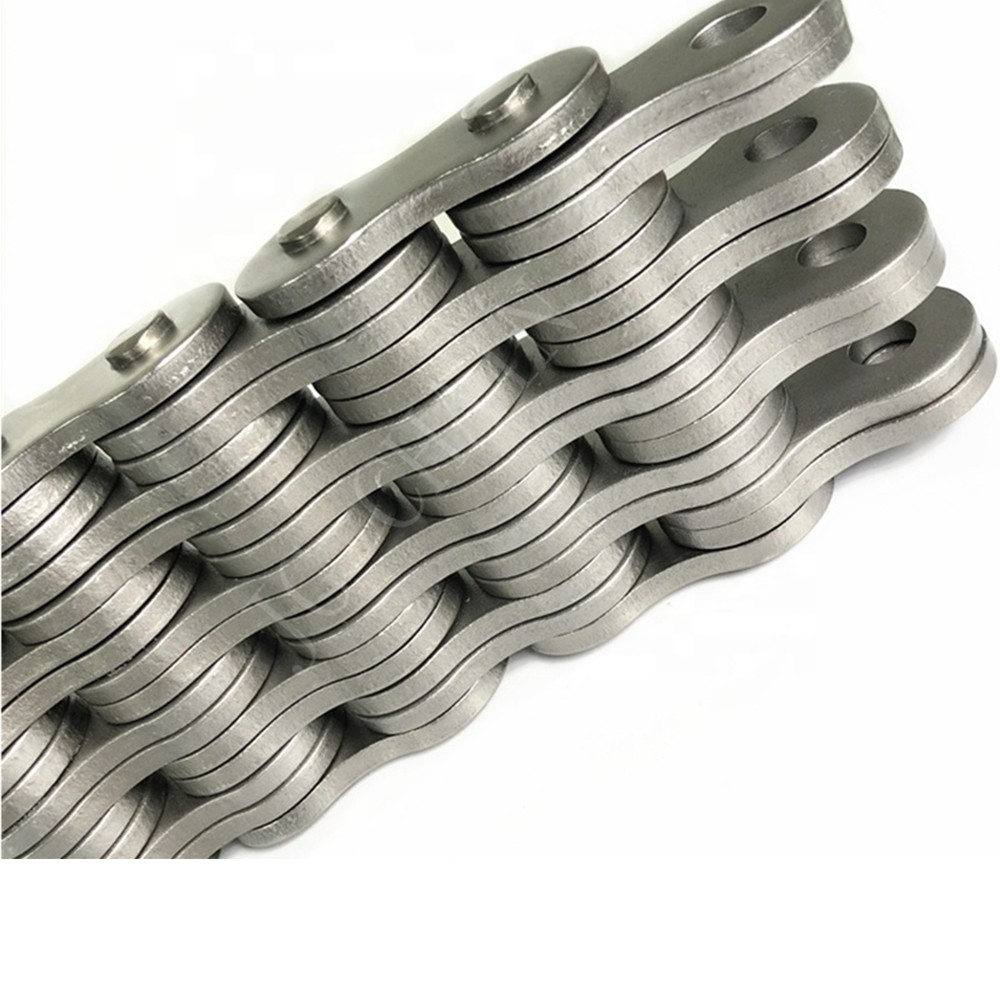

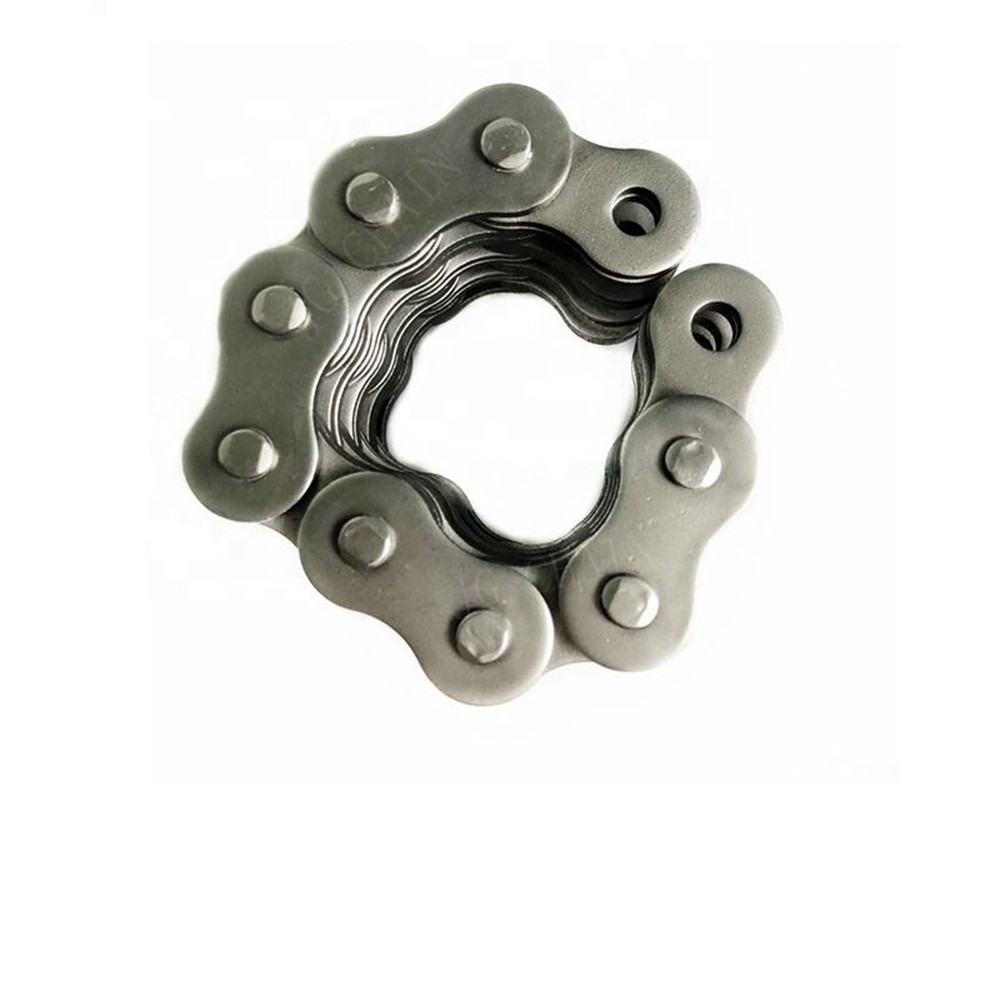

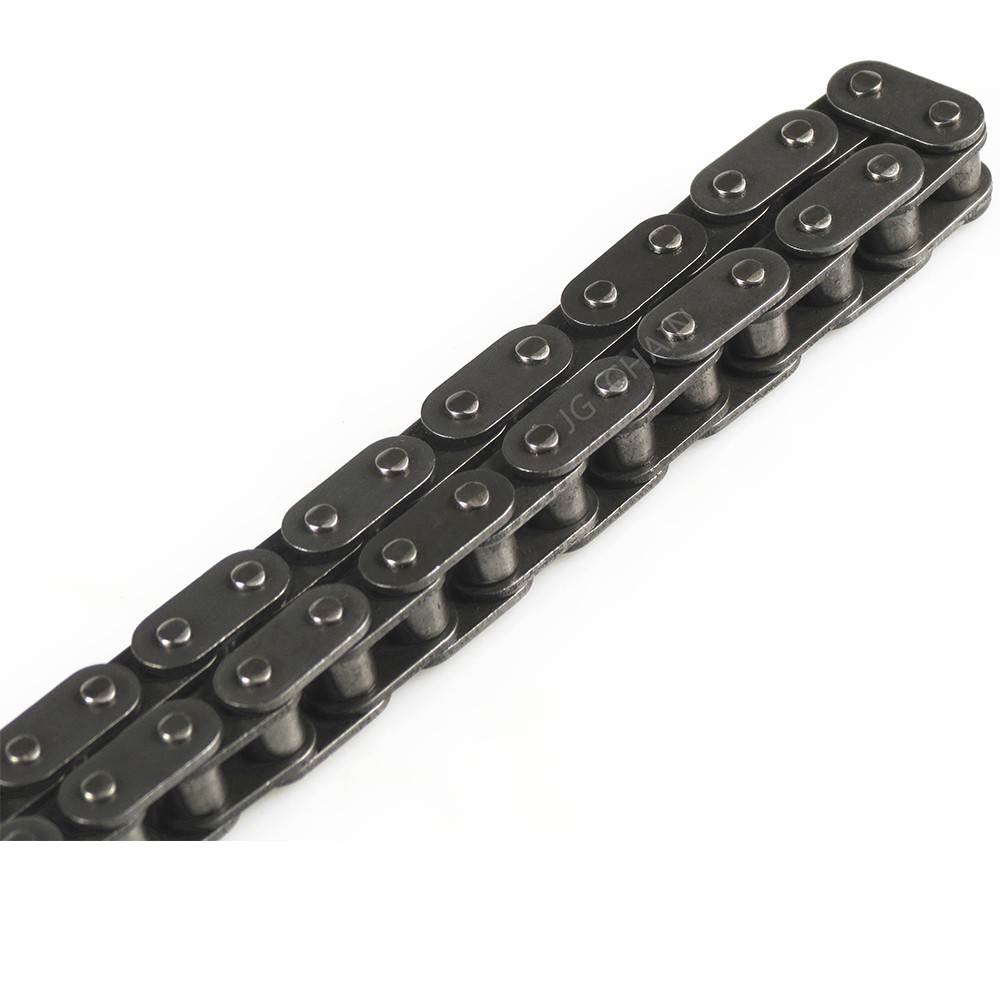

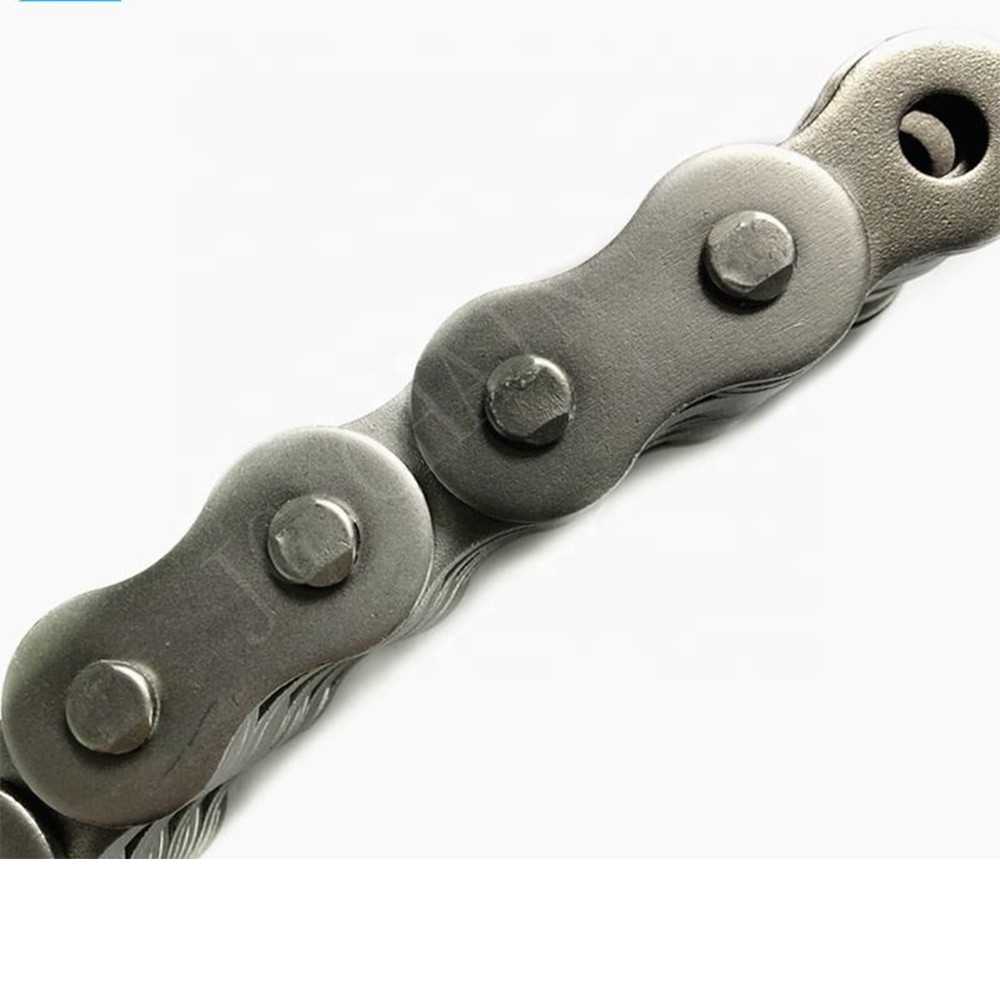

Forklift Leaf Chain
The forklift leaf chain is used on forklifts in factories or warehouses. Because it requires handling a lot of heavy cargo, it has the characteristics of high strength, safety and reliability.
The AL Series and BL Series Leaf Chains have distinct characteristics:
AL Series Leaf Chains:
The link plates of AL Series are of the same contour and thickness as the pin link plates of ANSI roller chains with the same pitch.
The pins in the AL Series chains have the same diameter as those of ANSI roller chains with the same pitch.
BL Series Leaf Chains:
BL Series Leaf Chains have link plates that are thicker and larger in contour compared to the AL Series link plates with the same pitch.
The link plates in the BL Series are equivalent to the link plates of ANSI roller chains with the next larger pitch.
The pins in the BL Series chains have the same diameter as those of ANSI roller chains with the next larger pitch.
specification :
BL522/BL523/BL534/BL544/BL546/BL566//BL588/BL622/BL623/BL634/BL644/BL646/BL666/BL688/BL822/BL823/BL834/BL844/BL846/BL866/BL1022/BL1023/BL1034/BL1044/BL1046/BL1066/BL1222/BL1223/BL1234/BL1244/BL1246/BL1266/BL1434/BL1444/BL1488/BL1688/BL1622/BL1623/BL1634/BL1644/BL1646/BL1666/AL522/AL523/AL524/AL544/AL566/AL622/AL623/AL644/AL666/AL688/AL844/AL866/AL888
