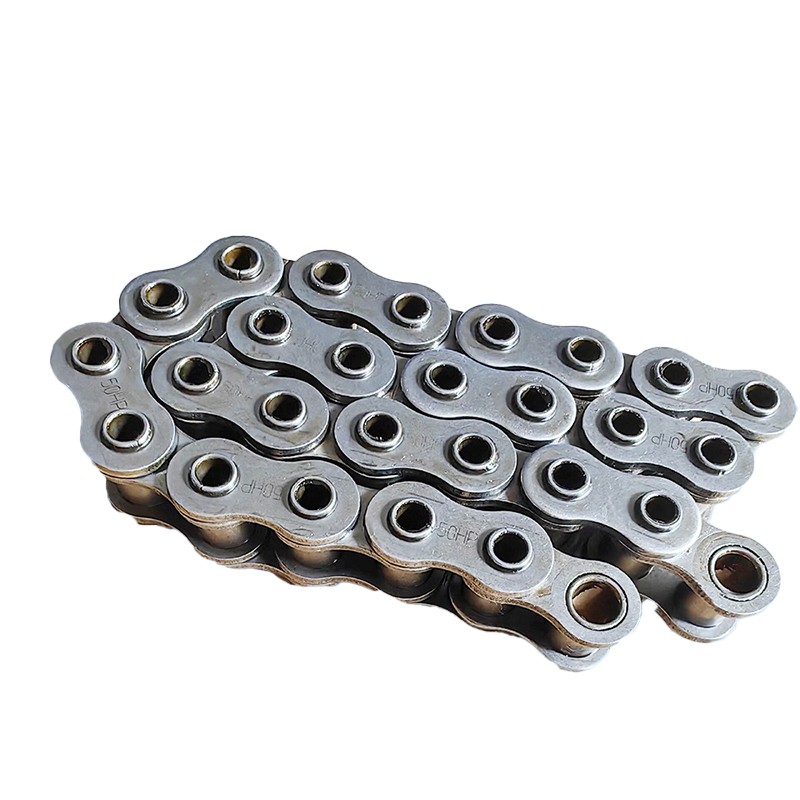

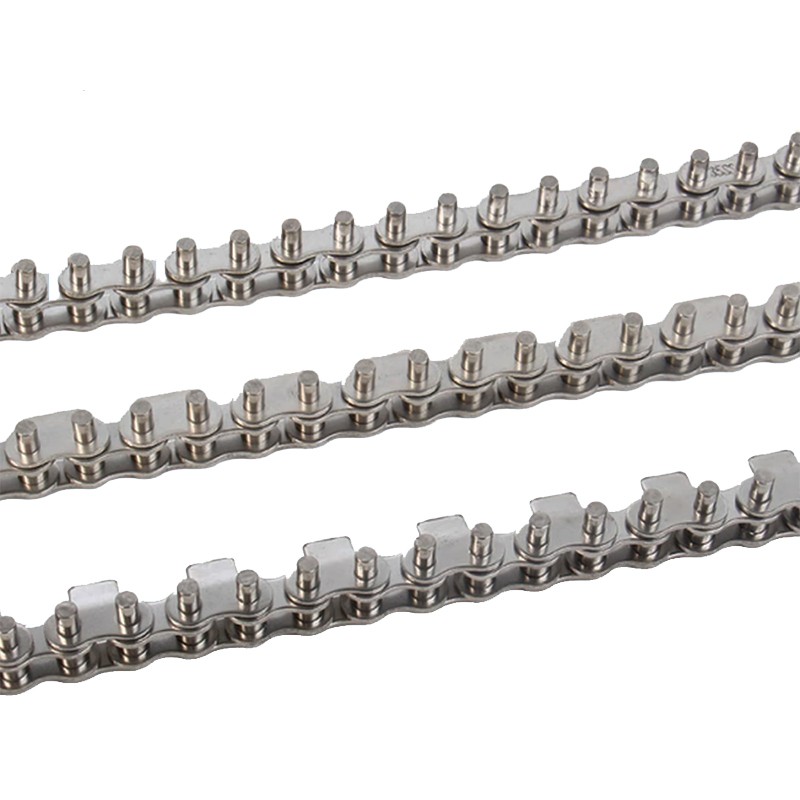

Wave Soldering Chain & Reflow Soldering Chain – High-Temperature Conveyor Chains for SMT Lines
Wave Soldering Chain & Reflow Soldering Chain are specialized high-temperature conveyor chains used in SMT and PCB assembly lines. They are designed to maintain stable PCB transport under extreme heat, continuous operation, and demanding production cycles. In soldering processes, conveyor stability directly impacts soldering quality, yield rate, and line uptime.
Manufactured in China with controlled materials selection and precision processing, these chains are widely used in SMT lines serving electronics, automotive electronics, and industrial control applications in Europe and North America.
Typical SMT Conveying Challenges
In wave soldering and reflow soldering environments, conveyor chains must withstand:- Long-term high-temperature exposure
- Repeated thermal expansion and contraction
- Flux residues, solder fumes, and chemical corrosion
- Continuous operation with minimal maintenance windows
Wave Soldering Chain
Wave soldering chains operate close to molten solder and flux, where corrosion resistance and heat tolerance are critical. The chain structure is optimized to maintain mechanical strength and pitch accuracy under sustained thermal load.Key features:
Resistance to molten solder splash and flux corrosion
Stable pitch for consistent PCB positioning
Reliable conveying in long-duration wave soldering lines
Reflow Soldering Chain
Reflow soldering chains are designed for multi-zone heating systems with frequent thermal cycling. Their main challenge is resisting thermal fatigue while maintaining dimensional accuracy.Key features:
- Excellent resistance to thermal cycling
- High dimensional stability at elevated temperatures
- Smooth operation for high-speed SMT reflow lines
Wave vs. Reflow Soldering Chain
While both are SMT conveyor chains, their design focus differs:
-
Wave soldering chains prioritize corrosion resistance and continuous heat endurance
-
Reflow soldering chains emphasize thermal cycling stability and precision control
Selecting the correct chain type helps reduce wear, improve soldering consistency, and lower long-term maintenance costs.
Manufacturing & Quality Control
Our Wave Soldering Chain & Reflow Soldering Chain products are manufactured in China using heat-resistant alloys and precision machining processes. Dimensional inspection and operational testing are conducted to ensure stable performance in real SMT production conditions.
Applications
SMT reflow soldering linesWave soldering PCB assembly lines
Consumer electronics manufacturing
Automotive electronics production
Selection Guide
When choosing a wave soldering or reflow soldering chain, consider operating temperature, PCB size and weight, conveyor speed, and exposure to solder or flux. Proper selection significantly extends service life and improves line stability.
FAQs – Wave Soldering Chain & Reflow Soldering Chain
Q1: Can one chain be used for both wave and reflow soldering?Different environments require different designs. Separate chains are recommended for optimal performance.
Q2: Are these chains compatible with European SMT equipment?
Yes, they are designed to fit commonly used SMT conveyor systems in Europe and North America.
Q3: What affects the service life of soldering conveyor chains?
Operating temperature, load conditions, and maintenance practices all play a role.
Summary
Wave Soldering Chain & Reflow Soldering Chain solutions provide stable, high-temperature conveying for SMT and PCB assembly lines. With application-focused design and consistent manufacturing quality, they help maintain soldering accuracy and reduce production downtime.
