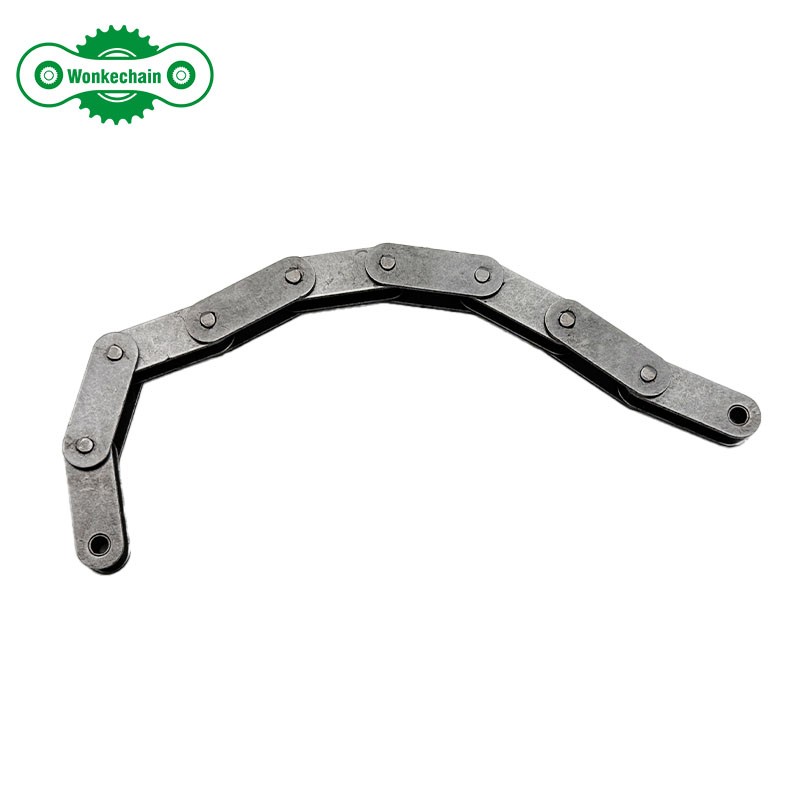

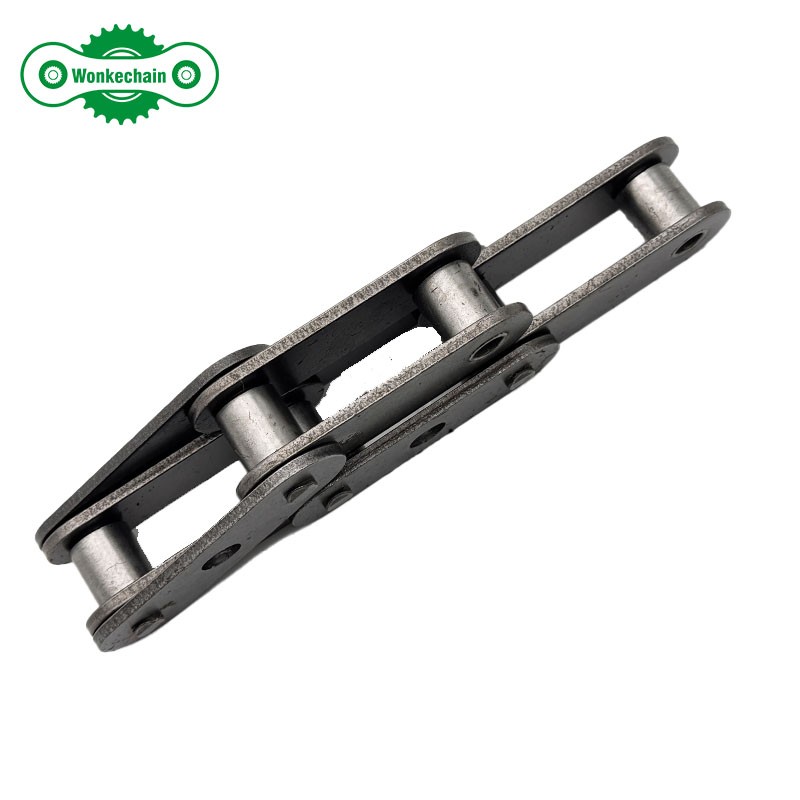

Double Pitch Roller Chain for Conveyor Systems
ANSI / ISO Standard | C2050 & C2060 Available
Product Overview
Our Double Pitch Roller Chain is a cost-effective and reliable solution for long-distance conveying applications. Designed according to ANSI standard, ISO, and DIN specifications, this chain delivers stable performance, reduced wear, and excellent compatibility with standard sprockets.
By using double the pitch of standard roller chains, fewer chain links are required over the same conveying length—resulting in lower weight, reduced friction, and longer wear life. It is widely used in conveyor systems, agricultural machinery, packaging lines, and material handling equipment.
Why Choose Our Double Pitch Roller Chain?
Optimized Double Pitch Design
This double pitch roller chain maintains the same roller, pin, and plate strength as standard roller chain while extending the pitch. The design reduces impact loads on the sprocket tooth and improves smooth conveying performance.
Solid Rollers for Smooth Operation
Our roller chains incorporate solid rollers enhancing rotation on the bushing. This minimizes friction between chain components, improves wear resistance, and extends the overall service life.
ANSI, ISO & DIN Compliance
Manufactured to meet ANSI standard, ISO 606, and DIN dimensional requirements, ensuring interchangeability with existing conveyor chains and roller chain sprockets worldwide.
Compatible with Standard Sprockets
Designed to work seamlessly with standard sprockets, reducing replacement costs and simplifying system upgrades.
Available Models
-
C2050 Double Pitch Roller Chain – economical choice for light-duty conveyor applications
-
C2060 Double Pitch Roller Chain – higher tensile strength for heavier conveying loads
Both models are available with solid rollers, oversized rollers, and optional hollow pin designs.
Attachment Options for Conveyor Applications
To meet different conveying needs, we offer a full range of attachment solutions:
-
Straight and bent attachments
-
Hollow pin configurations
-
Custom pin link designs
These attachments make the chain ideal for conveyor chains, agricultural machinery chains, and automated material handling systems.
Materials & Surface Treatments
-
Carbon steel for high strength and cost-effective performance
-
Stainless steel for food industry chains and corrosion resistant environments
-
Optional surface treatments for excellent corrosion protection
All chain components are heat treated to achieve maximum strength and greater wear resistance, helping reduce maintenance and downtime.
Typical Applications
-
Conveyor systems for packaging and logistics
-
Material handling and conveying applications
-
Agricultural machinery
-
Food industry conveyor lines
-
Light-duty industrial machinery
Key Performance Benefits
-
High tensile strength and durability
-
Reduced elongation during operation
-
Smooth engagement with sprocket teeth
-
Extended wear life and reduced maintenance costs
-
Economical choice for long-distance conveyors
Frequently Asked Questions (FAQ)
What is the main advantage of a double pitch roller chain?
A double pitch roller chain uses fewer links over the same length, reducing weight, friction, and cost while maintaining reliable conveying performance.
Can this chain run on standard roller chain sprockets?
Yes. Our chains are designed to be compatible with standard sprockets and roller chain sprockets manufactured to ANSI and ISO specifications.
What is the difference between C2050 and C2060?
C2050 is suitable for light-duty applications, while C2060 offers higher tensile capacity for heavier loads and longer conveyor lines.
Do you offer corrosion resistant options?
Yes. Stainless steel and corrosion resistant surface treatments are available for humid, washdown, or food industry environments.
Are attachments available for custom conveyor designs?
Absolutely. We provide various attachment and hollow pin options to match specific conveying and material handling requirements.
Is lubrication required?
Proper lubrication is recommended to extend wear life and ensure smooth operation, especially in continuous conveying systems.
Get a Quote Today
Looking for a reliable double pitch roller chain supplier?
Contact us now for pricing, technical drawings, and custom attachment solutions tailored to your conveyor system.
